Highlights* Support a variety of communications Support a variety of inverter communication
* Covering the 5-10KWH capacity segment;
* Support parallel connection and capacity expansion;
* 4U standard rackmount battery design:
* It is easy to install and does not require traditional cabinets.
Technical Parameters：
|

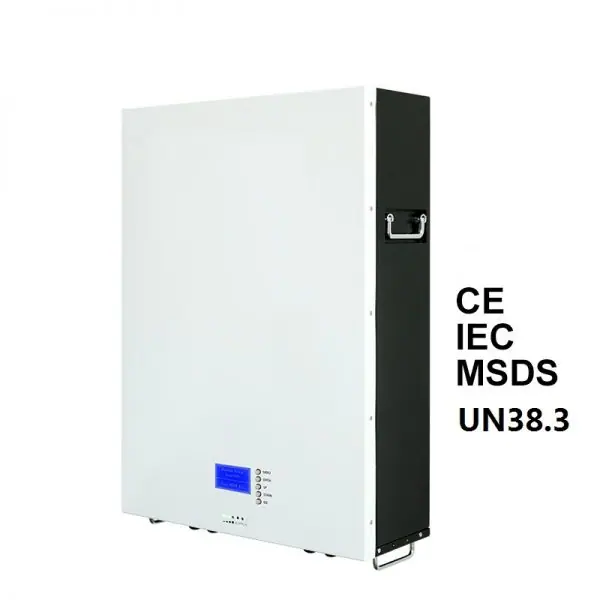

Wall-Mount LiFePO4 48V100AH 4.8KWH
|
|
|
Battery Chemistry:
|
LiFePO4
|
|
Nominal Voltage:
|
48V (15S)
|
|
Nominal Capacity:
|
150Ah
|
|
Nominal Energy:
|
7.2KWh
|
|
Continuous Discharge Current:
|
150A
|
|
Peak Discharge Current:
|
350A
|
|
Recommended Fast Charge Current:
|
150A
|
|
Discharging Cutoff Voltage:
|
41.25V (2.75V single cell)
|
|
Charging Voltage:
|
53.25V（3.55V single cell）
|
|
Charging Cutoff Voltage:
|
54.75V（3.55V single cell）
|
|
Net Weight:
|
74kg
|
|
Dimensions:
|
680mm (W) *480mm (H)*180mm (D)
|
|
Canbus,RS 485, RS232
|
|
|
Cycle Life: 6,000 times @ 70-80% DOD
|
|
|
Warranty:
|
basic 5 years, (10-year extended optional)
|
We offer a variety of shipping methods: sea, land, air
Attentions：
For safety usage, please be careful on below：
Warning!
1. Do not immerse the battery in water and keep it dry when not in use;
2. Do not knock, throw or affect the battery near a fire source or under extremely hot conditions;
3. Please charge according to the charging requirements;
4. Do not reverse the positive (+) and negative (-) terminals;
5. Do not short-circuit the battery by connecting wires or other metal objects to the positive (+) and negative (-) terminals;
6. Do not directly weld the battery terminals.
